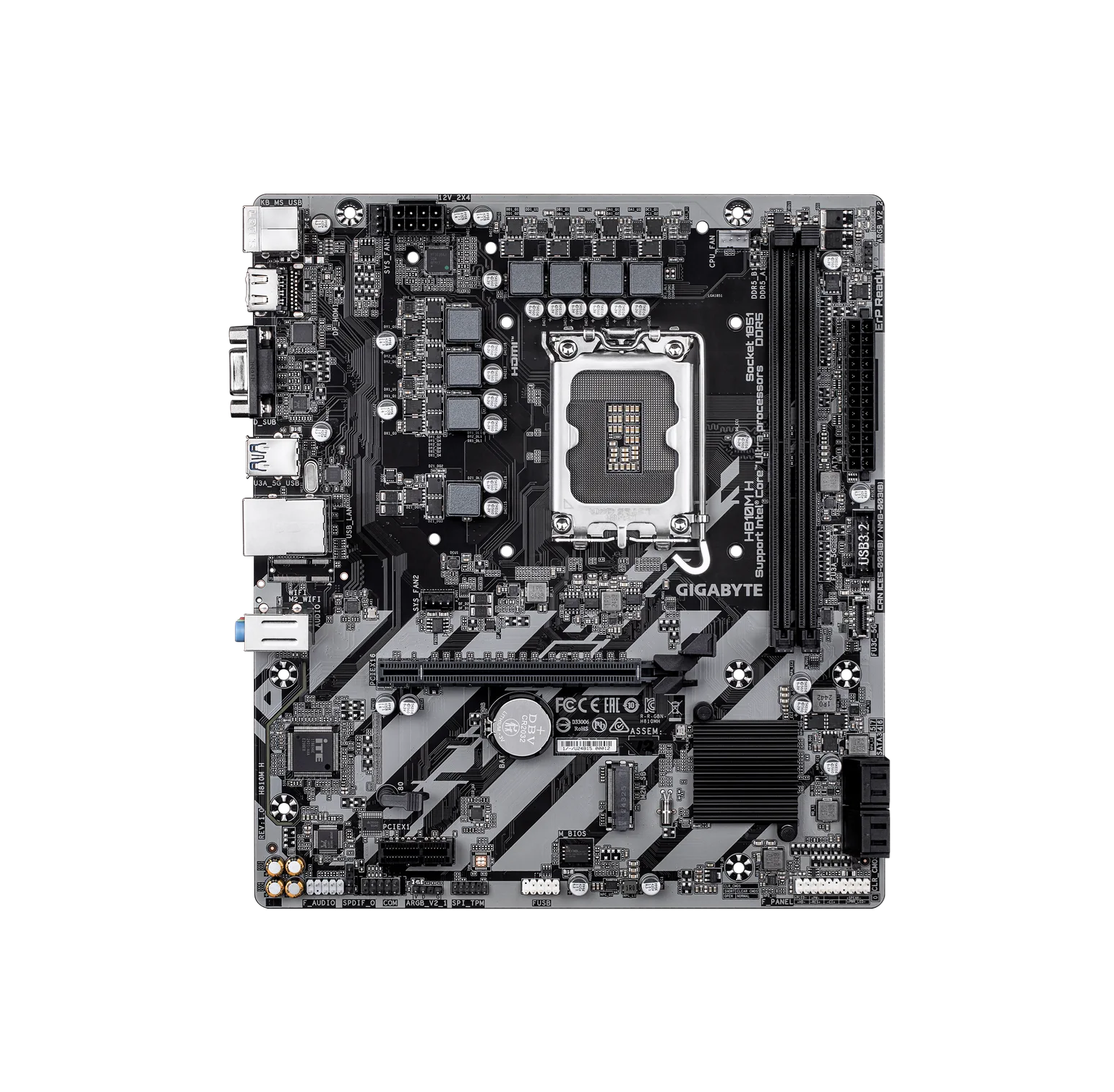

MotherboardsGigabyte H810M-H LGA1851 M-ATX DDR5 Motherboard

The Gigabyte H810M H is a reliable and efficient Micro-ATX motherboard designed to support the next generation of Intel computing. Built on the Intel H810 chipset with the LGA 1851 socket, it is specifically engineered for Intel Core Ultra processors (Series 2). Offering a streamlined feature set that includes DDR5 memory support, PCIe 4.0 connectivity, and a robust hybrid power design, this motherboard is an ideal choice for building compact, high-performance home or office systems that require modern speed and long-term stability.

Product Highlights:

• Intel® Socket LGA 1851: Fully supports the latest Intel® Core™ Ultra Processors (Series 2) for next-gen performance.

• Dual Channel DDR5: Two DIMM slots supporting high-speed DDR5 memory (up to 6400 MT/s OC) for enhanced multitasking and system bandwidth.

• Hybrid VRM Design: 4+1+2 phases digital power solution ensures stable and efficient energy delivery to the CPU.

• PCIe 4.0 Support: Features a reinforced PCIe 4.0 x16 slot for modern graphics cards and a PCIe 4.0 x4 M.2 slot for high-speed NVMe SSDs.

• Essential Connectivity:

  • Dual Display Outputs: HDMI 2.1 and D-Sub (VGA) ports for versatile monitor setups and legacy support.

  • Gigabit LAN: Realtek® GbE chip with bandwidth management for a stable and fast wired internet connection.

  • USB 3.2 Gen 1: Includes high-speed USB ports on the rear panel and an internal header for front-panel Type-C connectivity.

• Smart Fan 6: Multiple temperature sensors and hybrid fan headers with “Fan Stop” technology for precise and silent cooling management.

• Ultra Durable™ Construction: Solid-pin power connectors and high-quality capacitors provide increased longevity and power stability.

• EZ-Latch Design: Quick-release latch on the PCIe slot makes removing and upgrading graphics cards easy and safe.

• High-End Audio: Features high-quality audio capacitors and an audio noise guard for a cleaner, more immersive sound experience.

• Q-Flash Plus: Update the BIOS easily without needing to install the CPU, memory, or graphics card.

• RGB Fusion: Two addressable Gen2 LED headers allow for synchronized lighting control via the GIGABYTE Control Center.

• Compact Form Factor: Micro-ATX (24.4cm x 21.5cm) allows for installation in a wide range of small-to-mid-sized chassis.
